Natural Language Processing: Intro

Vitaly Vlasov

Lviv University

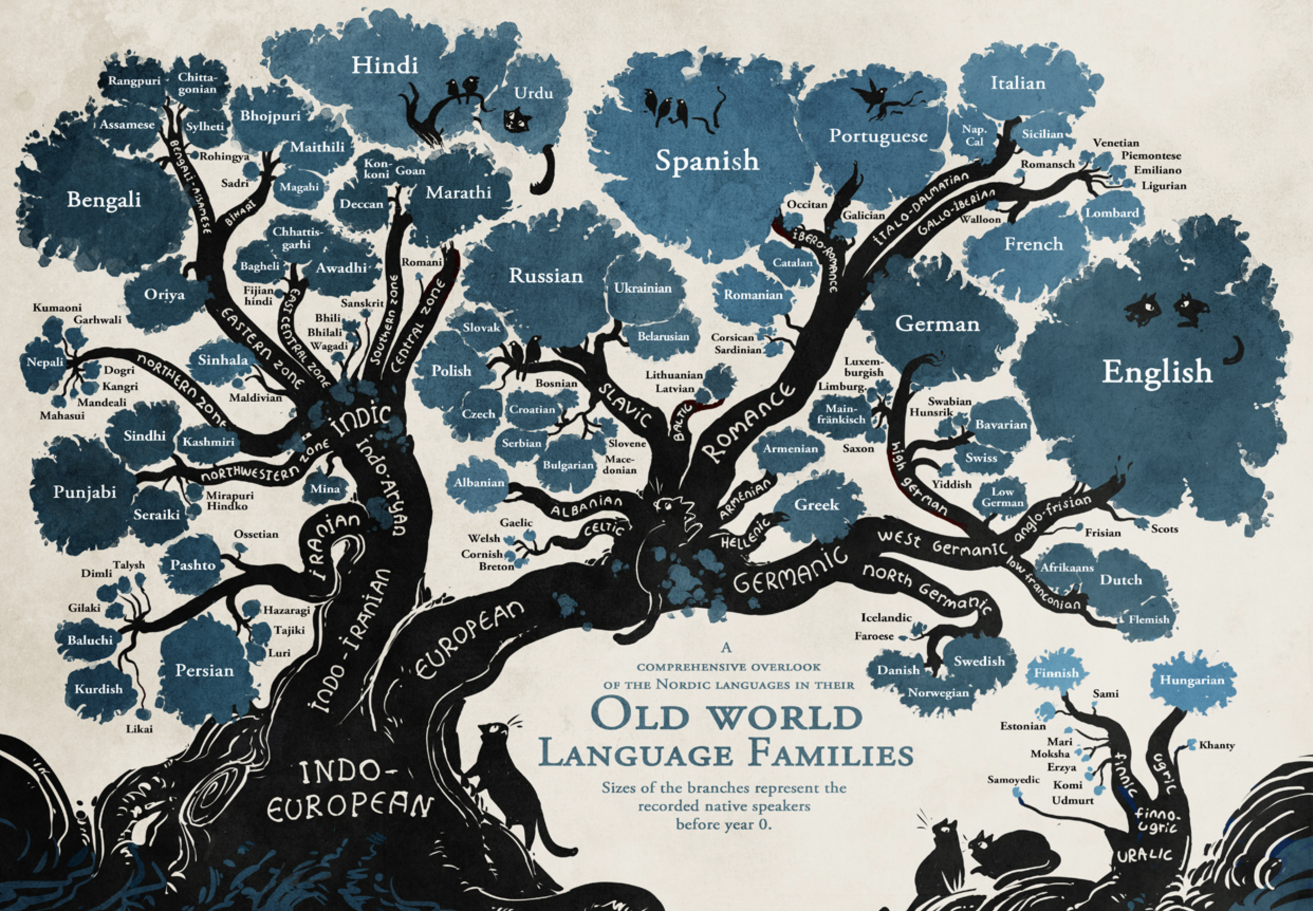

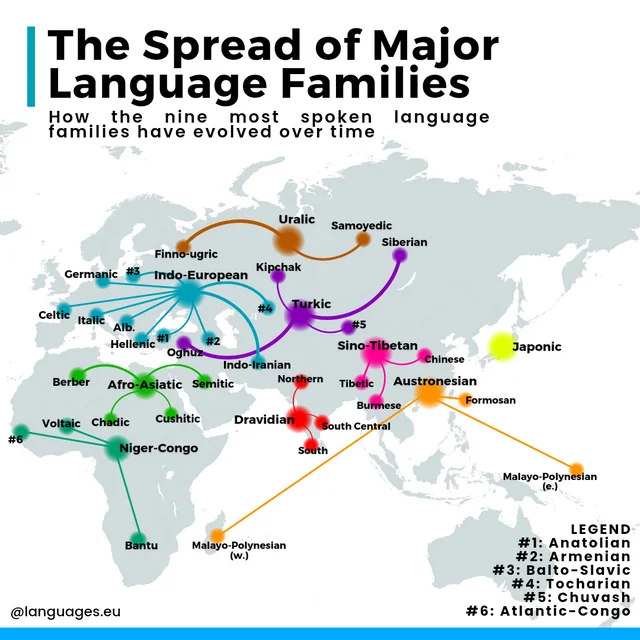

History

History

Stats

When?

Approximately between 200,000 years ago and 60,000 years ago (between the appearance of the first anatomically modern humans in southern Africa and the last exodus from Africa respectively)

How many?

Human languages count: 7097 (as of 2018).

Intelligent behaviour

Speaker (writer)

  • has the goal of communicating some knowledge
  • then plans some language that represents the knowledge
  • and acts to achieve the goal

Listener (reader)

  • perceives the language
  • and infers the intended meaning.

Reasons for NLP

  • To communicate with humans.
  • To learn.
  • To advance the scientific understanding of languages and language use

Goal of natural language

A medium for communication

rather than pure representation.

Plato vs Sophists

Sophists argued that physical reality can only be experienced through language.

Sapir-Whorf hypothesis

Language impacts cognition. Also known as linguistic relativity.

Predecessors

Australian aboriginal language Guugu Yimithirr have no words for relative (or ego- centric) directions, such as front, back, right, or left. Instead they use absolute directions, saying, for example, the equivalent of “I have a pain in my north arm.”

(Norvig “Artificial Intelligence: A Modern Approach”)

Predecessors

Wilhelm von Humboldt: language as a spirit of a nation.

Sapir-Whorf hypothesis

Deep structure

Wanner experiment (1974)

Subjects remember exact words with 50% accuracy but remember the content with 90% accuracy.

Hence - there must an internal nonverbal representation.

Polanyi’s paradox (1966)

The theory that human knowledge of how the world functions and of our own capability are, to a large extent, beyond our explicit understanding. (aka tacit knowledge).

Formal language

Definition

A formal language \(L\) over an alphabet \(\Sigma\) is a subset of \(\Sigma^*\), that is, a set of words over that alphabet.

Language model

Definition

We define a language model as a probability distribution describing the likelihood of any string.

ELIZA

ELIZA - an example of primitive pattern matching.

Regex

Regular expressions - a tool for describing text patterns.

Definition

An algebraic notation for characterizing a set of strings

Regex

Definition

A Kleene algebra is a set \(A\) together with two binary operations \(+: A \times A \rightarrow A\) and \(\cdot : A \times A \rightarrow A\) and one function \(\ast : A \rightarrow A\), written as \(a + b\), \(ab\) and \(a\ast\) respectively, so that the following axioms are satisfied.

  • Associativity of \(+\) and \(\cdot\): \(a + (b + c) = (a + b) + c\) and \(a(bc) = (ab)c\) \(\forall a, b, c \in A\).

  • Commutativity of \(+\): \(a + b = b + a\) \(\forall a, b \in A\)

  • Distributivity: \(a(b + c) = (ab) + (ac)\) and \((b + c)a = (ba) + (ca)\) \(\forall a, b, c \in A\)

  • Identity elements for \(+\) and \(\cdot\): \(\exists 0 \in A:\forall a \in A: a + 0 = 0 + a = a\); \(\exists 1 \in A: \forall a \in A: a1 = 1a = a\).

  • Annihilation by 0: \(a0 = 0a = 0 \forall a \in A\). The above axioms define a semiring.

  • \(+\) is idempotent: \(a + a = a \quad \forall a \in A\).

Regex

Ordering

It is now possible to define a partial order \(\leq\) on \(A\) by setting \(a \leq b\) if and only if \(a + b = b\) (or equivalently: \(a \leq b\) if and only if \(\exists x \in A: a + x = b\).

With any definition, \(a \leq b \leq a \Rightarrow a = b\). With this order we can formulate the last four axioms about the operation \(\ast\):

  • \(1 + a(a\ast) leq a\ast \forall a in A\).
  • \(1 + (a\ast)a \leq a\ast \forall a in A\).
  • if a and x are in A such that \(ax \leq x\), then \(a\ast x \leq x\)
  • if a and x are in A such that \(xa \leq x\), then \(x(a\ast) \leq x\).

Intuitively, one should think of a + b as the “union” or the “least upper bound” of a and b and of ab as some multiplication which is monotonic, in the sense that \(a \leq b \Rightarrow ax \leq bx\).

The idea behind the star operator is \(a\ast = 1 + a + aa + aaa + ...\). From the standpoint of programming language theory, one may also interpret + as “choice”, \(\cdot\) as “sequencing” and \(\ast\) as “iteration”.

Regex

Concatenation

A sequence of characters

/someword/
Examples
Regex Example
/alt/ The alternative option would be…
/simple/ A simple regex

Regex

Disjunction

A single character to choose among multiple options

/[asd]/
Examples
Regex Example
/[0123456789]/ Some number examples are 0, 3, 5
/[rgx]/ A simple regex

Regex

Disjunction with range

A single character to choose among multiple options

/[a-z]/
Examples
Regex Example
/[a-z]/ Phone number: 067-1234567

Regex

Cleene *

Zero or more occurrences of the previous character or regex.

Examples
Regex Example
/[a-z]*/ Phone number: 067-1234567

Regex

Cleene +

One or more occurrences of the previous character or regex.

Examples
Regex Example
/[a-z]+/ Phone number: 067-1234567

Regex

Wildcard dot

Any character except newline

Examples
Regex Example
/.+/ Phone number: 067-1234567
/beg.n/ begin, began, begun

Regex

Anchors

Matching beginning and end of lines

Examples
Regex Example
/^/ Start of line
/$/ End of line
/\b/ Word boundary
/\B/ Non-word boundary

Regex

Disjunction operator

Either/or for strings

Examples
Regex Example
/cat|dog/ Raining cats and dogs

Regex

Grouping

Used for precedence

Examples
Regex Example
/(cat|dog)*/ Raining cats and dogs

Regex

Substitutions

Used for precedence

Examples
Regex Before After
s/(cat|dog)*/frog/ Raining cats and dogs Raining frogs and frogs
s/behaviour/behavior/ Cognitive-behavioural therapy Cognitive-behavioral therapy

Regex

ELIZA sample

User1: Men are all alike.
ELIZA1: User2: They’re always bugging us about something or other.
ELIZA2: CAN YOU THINK OF A SPECIFIC EXAMPLE
User3: Well, my boyfriend made me come here.
ELIZA3: YOUR BOYFRIEND MADE YOU COME HERE
User4: He says I’m depressed much of the time.
ELIZA4: I AM SORRY TO HEAR YOU ARE DEPRESSED

ELIZA sample

s/.* YOU ARE (depressed|sad) .*/I AM SORRY TO HEAR YOU ARE \1/
s/.* YOU ARE (depressed|sad) .*/WHY DO YOU THINK YOU ARE \1/
s/.* all .*/IN WHAT WAY/
s/.* always .*/CAN YOU THINK OF A SPECIFIC EXAMPLE/

Parsing

Corpus

A computer-readable collection of text or speech.

Punctuation

Marks indicating how a piece of written text should be read and understood.

Utterance

Spoken correlate of a sentence.

Parsing

Disfluency

Break or disruption that occurs in the flow of speech.

Two types:

  • fragments
  • fillers

Parsing

Word types

Are the number of distinct words in a corpus; if the set of words in the vocabulary is \(V\) , the number of types is the vocabulary size \(|V|\).

Word instances

Are the total number \(N\) of running words.

(sometimes also called word tokens).

Example

To be, or not to be, that is the question.

Parsing

Corpus Types = \(|V|\) Instances = \(N\)
Shakespeare 31 thousand 884 thousand
Brown corpus 38 thousand 1 million
Switchboard telephone conversations 20 thousand 2.4 million
COCA 2 million 440 million
Google n-grams 13 million 1 trillion

Parsing

Herdan’s Law (Herdan, 1960) or Heaps’ Law (Heaps, 1978)

\[ |V|= kN^{\beta}. \] Here \(k\) and \(\beta\) are positive constants, and \(0 <\beta <1\).

Parsing

Zipf’s law

If \(t_1\) is the most common term in the collection, \(t_2\) is the next most common, and so on, then the collection frequency \(cf_i\) of the \(i\)-th most common term is proportional to \(\frac{1}{i}\): \[ cf_i \propto \frac{1}{i}, \] or \[ cf_i = ci^k. \]

Parsing

Wordforms

Example: cat vs cats. We say these two words are different wordforms but have the same lemma.

Lemma

A lemma is a set of lexical forms having the same stem, and usually the same major part-of-speech.

Example

The wordform is the full inflected or derived form of the word. The two wordforms cat and cats thus have the same lemma, which we can represent as cat.

Parsing

Morphemes

The smallest meaning-bearing unit of a language.

Examples

Indistinguisble -> [in, distinguish, able]

Affixes

Affix taxonomy

Affixes are classified into two types:

  1. According to their position in the word
  2. According to their function in a phrase or sentence.

By position

  • Prefixes
  • Infixes
  • Suffixes.
  • Circumfixes (Georgian, Malay)

Affixes

By function

  1. Derivational affixes are for creating new words usually by changing the part of speech or the meaning or both to the words when they are added to.

They can be prefixes or suffixes e.g. unkind , kingship etc.

  1. Inflectional affixes mark the grammatical categories e.g. –s in girls

Language morphology

  • analytical (English)
  • inflected (Ukrainian)
  • agglutinative (partially German)

Corpora

Varieties depending on:

  • languages
  • language varieties
  • genres
  • time
  • speaker demographics

Parsing

Text normalization consists of:

  1. Tokenizing (segmenting) words
  2. Normalizing word formats
  3. Segmenting sentences

Tokenization

Two types:

  • top-down
  • bottom-up

Top-down tokenization

  • break off punctuation as a separate token
  • internal punctuation: Ph.D., AT&T
  • prices ($45.55) and dates (18/02/2025)
  • URLs (https://www.stanford.edu),
  • Twitter hashtags (#nlproc)
  • email addresses (someone@cs.colorado.edu).
  • number expressions introduce complications: e.g. 555,500.50.
  • clitic contractions: I'm, l'homme.

Top-down tokenization

Penn Treebank tokenization standard

Used for the parsed corpora (treebanks) released by the Lin- guistic Data Consortium (LDC).

  • separates out clitics (doesn’t becomes does plus n’t)
  • keeps hyphenated words together
  • separates out all punctuation

Top-down tokenization

nltk.regexp_tokenize

>>> text = ’That U.S.A. poster-print costs $12.40...’
>>> pattern = r’’’(?x) # set flag to allow verbose regexps
... (?:[A-Z]\.)+ # abbreviations, e.g. U.S.A.
... | \w+(?:-\w+)* # words with optional internal hyphens
... | \$?\d+(?:\.\d+)?%? # currency, percentages, e.g. $12.40, 82%
... | \.\.\. # ellipsis
... | [][.,;"’?():_‘-] # these are separate tokens; includes ], [
... ’’’
>>> nltk.regexp_tokenize(text, pattern)
[’That’, ’U.S.A.’, ’poster-print’, ’costs’, ’$12.40’, ’...’]

Top-down tokenization

Word tokenization is more complex in languages like written Chinese, Japanese, and Thai, which do not use spaces to mark potential word-boundaries.

Morphemes In Chinese

for example, words are composed of characters (called hanzi in Chinese). Each character generally represents a single unit of meaning (a morpheme).

Word segmentation

For Japanese and Thai the character is too small a unit, and so algorithms for word segmentation are required.

Bottom-up tokenization

Definition

We use the data to infer the tokens. We call these tokens subwords.

Parts

  • token learner: produces a vocabulary of tokens
  • token segmenter: takes a test sentence and segments it into tokens

Examples

  • byte-pair encoding (Sennrich et al., 2016)
  • unigram language modeling (Kudo, 2018)
  • SentencePiece (Kudo and Richardson, 2018)

BPE

Token Learner

  1. Start with a vocabulary that is just the set of all individual characters.

  2. Examine the training corpus, choose the two symbols that are most frequently adjacent

    2.1. For example, if (‘A’, ‘B’) frequently occur together, it will add a new merged symbol ‘AB’ to the vocabulary

    2.2. And replaces every adjacent ’A’ ’B’ in the corpus with the new ‘AB’.

  3. Continue counting and merging, creating new longer and longer character strings, until \(k\) merges have been done creating k novel tokens; \(k\) is thus a parameter of the algorithm.

4.The resulting vocabulary consists of the original set of characters plus \(k\) new symbols.

BPE

Note

The algorithm is usually run inside words (not merging across word boundaries), so the input corpus is first white-space-separated to give a set of strings, each corresponding to the characters of a word, plus a special end-of-word symbol , and its counts.

BPE

function BYTE-PAIR ENCODING(strings C, number of merges k) returns vocab \(V\)

\(V \leftarrow\) unique characters in C # initial set of tokens is characters

for i = 1 to k do # merge tokens k times

\(\quad\) \(t_L\), \(t_R\) \(\leftarrow\) #Most frequent pair of adjacent tokens in C

\(\quad\) \(t_{NEW} \leftarrow t_L + t_R\) # make new token by concatenating

\(\quad\) \(V \leftarrow V + t_{NEW}\) # update the vocabulary

\(\quad\) Replace each occurrence of \(t_L\), \(t_R\) in \(C\) with \(t_{NEW}\). # update the corpus

return \(V\)

BPE

Token Segmenter:

  1. Runs on the merges we have learned from the training data on the test data.
  2. It runs them greedily, in the order we learned them. (Thus the frequencies in the test data don’t play a role, just the frequencies in the training data).

Word Normalization

Simplest method: case folding.

Note

Not very useful for text classification: compare US (the country) and us (pronoun).

Lemmatization

The task of determining that two words have the same root, despite their surface differences.

be \(\rightarrow\) is, are

Performed using morphological parsing.

Word Normalization

Morphological parsing

Splitting each word into morphemes of two types:

  • stems
  • affixes

Naive version: stemming

This means just dropping affixes.

Word Normalization

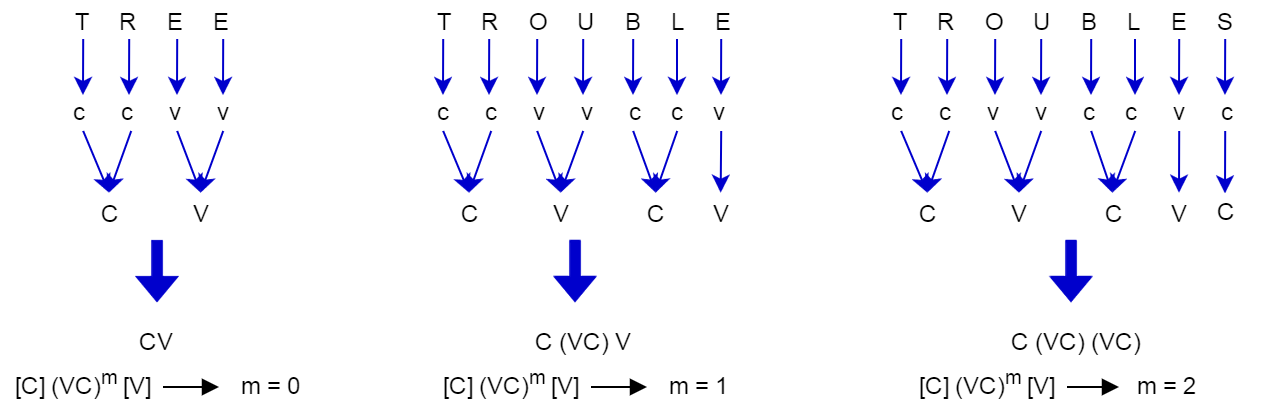

Porter stemmer

  • classify every character in a given token as either a consonant (“c”) or vowel (“v”)
  • group subsequent consonants as “C” and subsequent vowels as “V.”
  • represent every word token as a combination of consonant and vowel groups.

Porter Stemmer

Example

collection \(\rightarrow\) CVCV…C

illustrate \(\rightarrow\) VCVC…V

Both can be presented as:

\[ [C](VC)^m[V] \]

m is called the measure of the word.

Porter Stemmer

Porter Stemmer

Rules

Standard form: \[ (\textbf{condition})\textbf{S}_1 \rightarrow \textbf{S}_2 \] There are five phases of rule application

How to read

If a word ends with the suffix \(S_1\)

AND

the stem before \(S_1\) satisfies the given condition

THEN \(S_1\) is replaced by \(S_2\).

Porter Stemmer

Conditions

  • \(\ast S\): the stem ends with S (and similarly for the other letters)
  • \(\ast v \ast\): the stem contains a vowel
  • \(\ast d\): the stem ends with a double consonant (e.g. -TT, -SS)
  • \(\ast o\): the stem ends with \(cvc\), where the second c is not W, X or Y (e.g. -WIL, -HOP)

And the condition part may also contain expressions with and, or and not.

Example

\((m > 1) EMENT \rightarrow\) will perform this transformation:

replacement \(\rightarrow\) replac

Word Normalization

Other stemmers:

Lovins stemmer

The first published stemming algorithm, is essentially a heavily parametrized find-and-replace function.

  • compares each input token against a list of common English suffixes, each suffix being conditioned by one of twenty-nine rules
  • if the stemmer finds a predefined suffix in a token and removing the suffix does not violate any conditions attached to that suffix (such as character length restrictions), the algorithm removes that suffix.
  • the stemmer then runs the resulting stemmed token through another set of rules that correct for common malformations, such as double letters (such as hopping becomes hopp becomes hop).

Word Normalization

Snowball stemmer

An updated version of the Porter stemmer. It differs from Porter in two main ways:

  1. While Lovins and Porter only stem English words, Snowball can stem text data in other Roman script languages, such as Dutch, German, French, or Spanish. Also has capabilities for non-Roman script languages.
  2. Snowball has an option to ignore stop words.

Word Normalization

Lancaster stemmer (also called Paice stemmer)

The most aggressive English stemming algorithm.

  • it contains a list of over 100 rules that dictate which ending strings to replace.
  • the stemmer iterates each word token against each rule. If a token’s ending characters match the string defined in a given rule, the algorithm modifies the token per that rule’s operation, then runs the transformed token through every rule again.
  • the stemmer iterates each token through each rule until that token passes all the rules without being transformed.

Word Normalization

Stemming errors

  • over-generalizing (lemmatizing policy to police)
  • under-generalizing (not lemmatizing European to Europe)

Sentence Tokenization

Challenges

  • multi-purpose punctuation
  • abbreviation dictionaries

Edit distance

Definition

Minimum edit distance between two strings is defined as the minimum number of editing operations:

  • insertion
  • deletion
  • substitution

needed to transform one string into another.

Edit distance

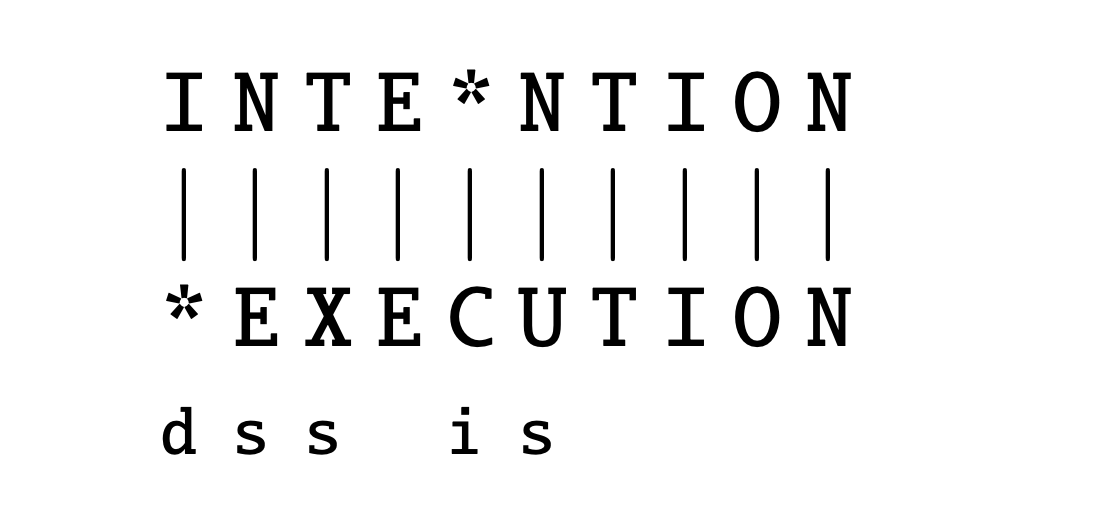

String alignment

Edit distance

Levenshtein distance

Each of the 3 operations has cost 1.

Alternatively, we can forbid substitutions (this is equivalent to saying that substitutions have cost 2).

Edit distance

Wagner-Fischer minimum edit distance algorithm.

Notation

  • \(X\): source string with length \(n\)
  • \(Y\): target string with length \(m\)
  • \(D[i,j]\): edit distance between \(X[1..i]\) and \(Y[1..j]\).
  • \(D[n,m]\): edit distance between \(X\) and \(Y\).

Calculation

\[ D[i,j] = \min \begin{cases} D[i-1,j] + \text{del_cost}(source[i]),\\ D[i,j-1] + \text{ins_cost}(target[j]),\\ D[i-1,j-1] + \text{sub_cost}(source[i], target[j]). \end{cases} \]

Edit distance

Calculation without substitution

\[ D[i,j] = \min \begin{cases} D[i-1,j] + 1,\\ D[i,j-1] + 1,\\ D[i-1,j-1] + \begin{cases} 2; \quad \text{if} \quad source[i] \neq target[j]), \\ 0; \quad \text{if} \quad source[i] = target[j]) \end{cases} \end{cases} \]

Edit distance

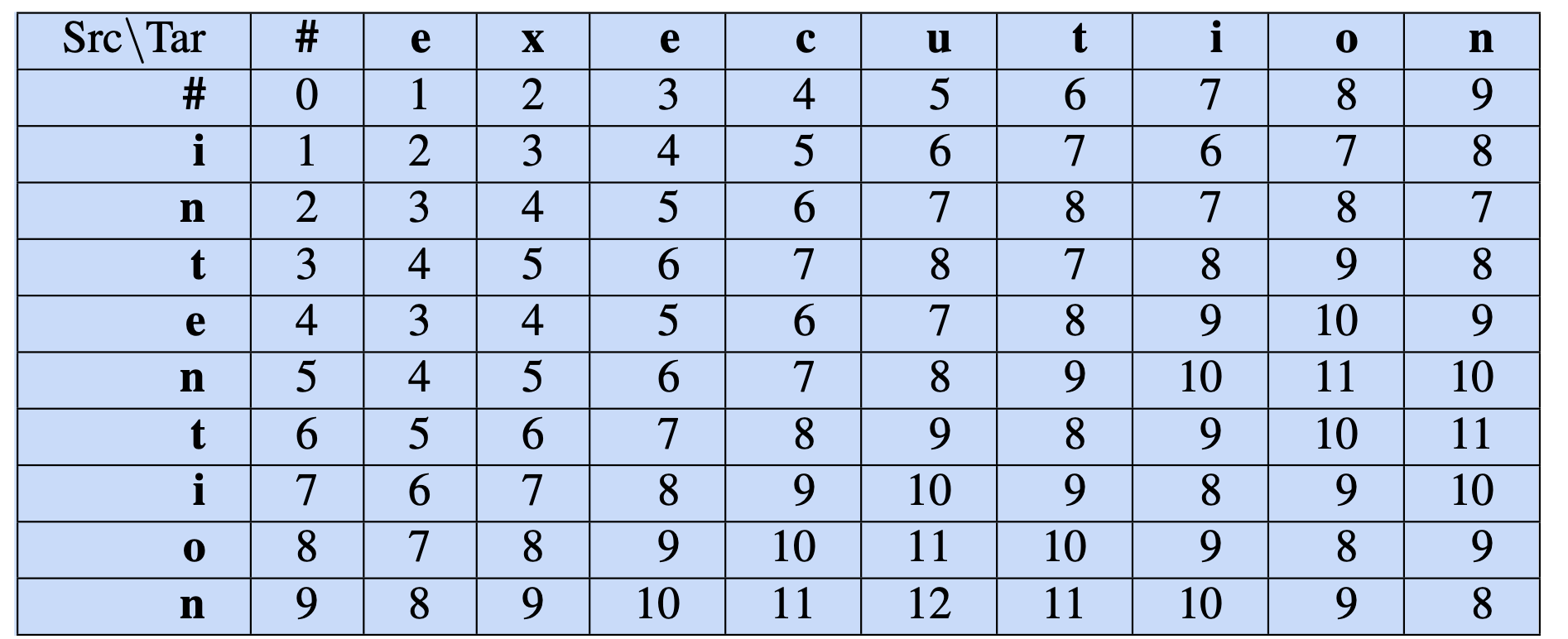

Wagner-Fischer algorithm

function MIN-EDIT-DISTANCE(source, target) returns min-distance

\(n \leftarrow LENGTH(source)\)

\(m \leftarrow LENGTH(target)\)

Create a distance matrix \(D[n+1,m+1]\)

# Initialization: the zeroth row and column is the distance from the empty string

D[0,0] = 0

for each row i from 1 to n do

\(\quad\) \(D[i,0] \leftarrow D[i-1,0]\) + del_cost(source[i])

for each column j from 1 to m do

\(\quad\) \(D[0,j] \leftarrow D[0, j-1] + ins-cost(target[j])\)

Edit distance

Wagner-Fischer algorithm

# Recurrence relation:

for each row i from 1 to n do

\(\quad\) for each column j from 1 to m do

\(\quad\) \(\quad\) \(D[i, j] \leftarrow MIN( D[i−1, j]\) + del_cost(source[i]),

\(\quad\)\(\quad\) \(\quad\) \(D[i−1, j−1] + sub\_cost(source[i], target[j])\),

\(\quad\)\(\quad\) \(\quad\) \(D[i, j−1] + ins\_cost(target[j]))\)

# Termination

return D[n,m]

Edit distance

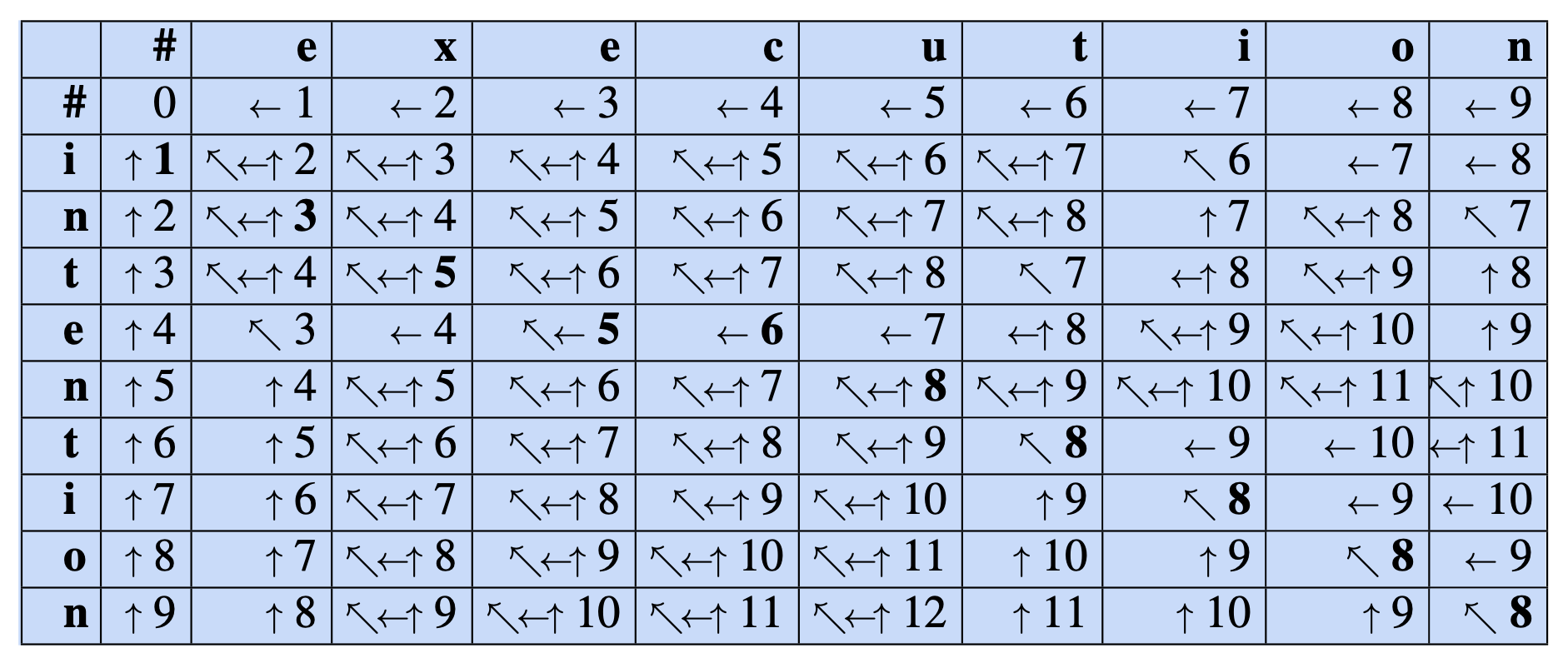

Cost alignment

Edit distance

Hamming distance

A number of positions at which the corresponding symbols are different.

Therefore, identical to Levenshtein with only substitution allowed.

Can only work for strings of similar length.

def hamming_distance(string1: str, string2: str) -> int:
    """Return the Hamming distance between two strings."""
    if len(string1) != len(string2):
        raise ValueError("Strings must be of equal length.")
    dist_counter = 0
    for n in range(len(string1)):
        if string1[n] != string2[n]:
            dist_counter += 1
    return dist_counter
